金融学图表 matplotlib.finance

quant001

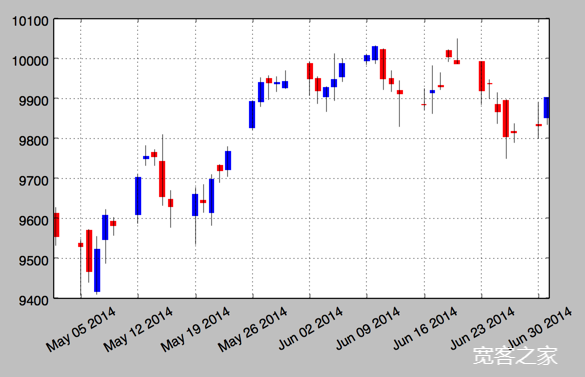

1.烛柱图 candlestick

1. #!/etc/bin/python

2. #coding=utf-8

3. import matplotlib.pyplot as plt

4. import matplotlib.finance as mpf

5. start = (2014, 5,1)

6. end = (2014, 7,1)

7. quotes = mpf.quotes_historical_yahoo('^GDAXI',start,end)

8. # print quotes[:2]

9.

10. fig, ax = plt.subplots(figsize=(8,5))

11. fig.subplots_adjust(bottom = 0.2)

12. mpf.candlestick(ax, quotes, width=0.6, colorup='b',colordown='r')

13. plt.grid(True)

14. ax.xaxis_date() #x轴上的日期

15. ax.autoscale_view()

16. plt.setp(plt.gca().get_xticklabels(),rotation=30) #日期倾斜

17. plt.show()

复制代码

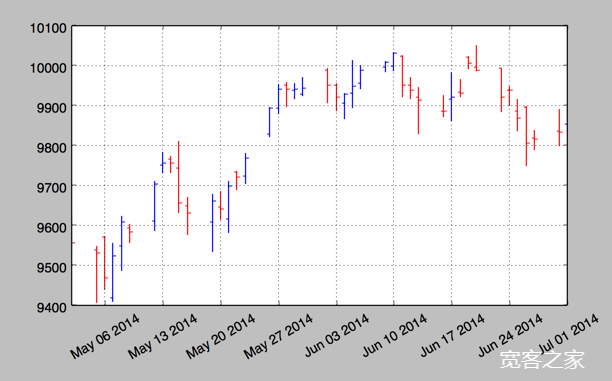

2. plot_day_summary

该函数提供了一个相当类似的图标类型,使用方法和 candlestick 函数相同,使用类似的参数. 这里开盘价和收盘价不是由彩色矩形表示,而是由两条短水平线表示.

1. #!/etc/bin/python

2. #coding=utf-8

3. import matplotlib.pyplot as plt

4. import matplotlib.finance as mpf

5. start = (2014, 5,1)

6. end = (2014, 7,1)

7. quotes = mpf.quotes_historical_yahoo('^GDAXI',start,end)

8. # print quotes[:2]

9.

10. fig, ax = plt.subplots(figsize=(8,5))

11. fig.subplots_adjust(bottom = 0.2)

12. mpf.plot_day_summary(ax, quotes,  colorup='b',colordown='r')

13. plt.grid(True)

14. ax.xaxis_date() #x轴上的日期

15. ax.autoscale_view()

16. plt.setp(plt.gca().get_xticklabels(),rotation=30) #日期倾斜

17. plt.show()

复制代码

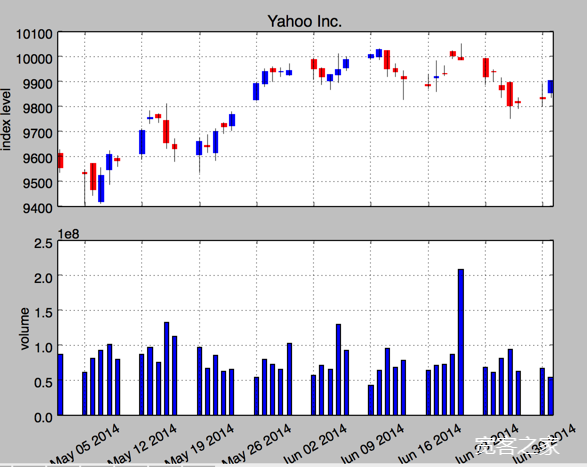

3.股价数据和成交量

1. #!/etc/bin/python

2. #coding=utf-8

3. import matplotlib.pyplot as plt

4. import numpy as np

5. import matplotlib.finance as mpf

6. start = (2014, 5,1)

7. end = (2014, 7,1)

8. quotes = mpf.quotes_historical_yahoo('^GDAXI',start,end)

9. # print quotes[:2]

10.

11. quotes = np.array(quotes)

12. fig, (ax1, ax2) = plt.subplots(2, sharex=True, figsize=(8,6))

13. mpf.candlestick(ax1, quotes, width=0.6,colorup='b',colordown='r')

14. ax1.set_title('Yahoo Inc.')

15. ax1.set_ylabel('index level')

16. ax1.grid(True)

17. ax1.xaxis_date()

18. plt.bar(quotes[:,0] - 0.25, quotes[:, 5], width=0.5)

19.

20. ax2.set_ylabel('volume')

21. ax2.grid(True)

22. ax2.autoscale_view()

23. plt.setp(plt.gca().get_xticklabels(),rotation=30)

24. plt.show()

复制代码

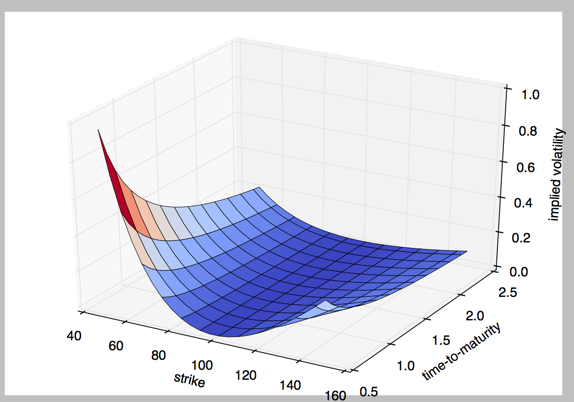

3.3D 绘图

1. #!/etc/bin/python

2. #coding=utf-8

3. import numpy as np

4. import matplotlib.pyplot as plt

5.

6. stike = np.linspace(50, 150, 24)

7. ttm = np.linspace(0.5, 2.5, 24)

8. stike, ttm = np.meshgrid(stike, ttm)

9. print  stike[:2]

10.

11. iv = (stike - 100) ** 2 / (100 * stike) /ttm

12. from mpl_toolkits.mplot3d import Axes3D

13. fig = plt.figure(figsize=(9,6))

14. ax = fig.gca(projection='3d')

15. surf = ax.plot_surface(stike, ttm, iv, rstride=2, cstride=2, cmap=plt.cm.coolwarm, linewidth=0.5, antialiased=True)

16. ax.set_xlabel('strike')

17. ax.set_ylabel('time-to-maturity')

18. ax.set_zlabel('implied volatility')

19.

20. plt.show()
